Broken Probe Tip Filter Removal (WI-phx42-104)

Published: 2024-03-21      Revised: 2024-03-21

Click here for a printable version of this procedure.

Items Needed

Part NameLDAR Part #

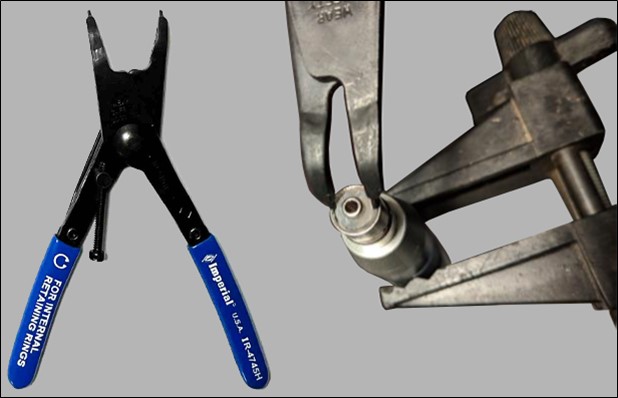

Fixed-Tip Retaining Ring Pliers4217

Procedure

  1. Carefully use the tip of the pliers to grab the outside of the plastic.


  2. Push the ends of the pliers firmly into place.

  3. Spin the plastic counterclockwise to screw it out of the filter base.

Reminder: Ensure to not touch the center tapered post. If this portion gets scratched or marred, it will need to be replaced.
